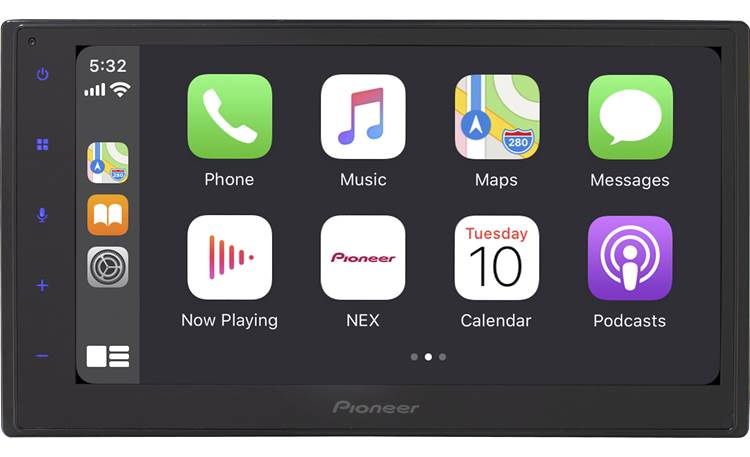

Pioneer DMH-1770NEX

Product highlights:
General Features:
digital multimedia receiver with AM/FM tuner (does not play discs)
6.8" capacitive touchscreen
Bluetooth hands-free calling and audio streaming
multi-color illumination
fits double-DIN dash openings
wireless remote control

Smartphone Features:
Apple CarPlay compatible
Android Auto compatible
USB Mirroring for select Android phones
built-in iPhone/iPod control
playback and control of music files on compatible Android devices
Siri Hands Free compatible for use with iPhones
Google Voice compatible for use with Android phones

Audio/video Features:
plays MP3, WMA, AAC, FLAC, and WAV music files
plays lossless FLAC audio files up to 192kHz/24-bit
13-band graphic equalizer
7 EQ curve presets
high- and low-pass filters

Expandability:
works with SiriusXM SXV300 tuner—supports Tune Mix, Traffic & Weather Now, and Sports Flash features
inputs: rear USB port, rear-view camera input, rear 3.5mm A/V input
outputs: video output, 6-channel preamp outputs (2-volt front, rear, subwoofer)

Other Information:
wired connection to parking brake required to access settings and other features on this receiver (the brake must be connected and set for video display)
compatible with most factory steering wheel audio controls (adapter required)
built-in internal amp (14 watts RMS CTA-2006/50 peak x 4 channels)
warranty: 1 year
Our 60-day money-back guarantee
MFR # DMH-1770NEX

What's in the box:
Pioneer DMH-1770NEX owner's manual
Digital multimedia receiver(10A fuse)
Wiring harness
Remote control (CXE5116)
CR2025 3V lithium battery (installed in remote)
AV/Preout harness
Aux-in harness
Camera/SWC harness
SiriusXM harness
58" USB extension cable
Microphone w/ bracket (attached 13' cable terminated by a right-angled 2.5mm connector)
Two-sided tape
6 Pan-head ISO screws (M5 x 9mm)
6 Counter-sunk ISO screws (M5 x 9mm)
Installation Manual
Quick Start Guide
Warranty Sheet
