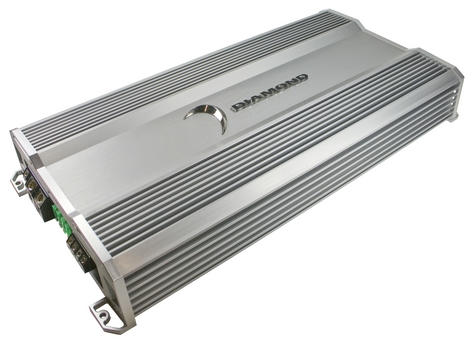

Diamond D61200.1 1200 W Car Audio Amplifier D6 Series

Class D Mono Amplifier Topology Pulse Width Modulated (PWM) MOSFET Switching Power Supply Extruded Aluminum Heatsink Double Sided Gold Plated PC boards Nickel Plated Panel Mount RCA Low Level Audio Inputs Nickel plated, low resistance power and speaker connector blocks Power ON and Protection LED Lighting for Easy Diagnostics Thermal, Short Circuit, and Overload (Low Impedance) Protection 12 dB bass boost Chassis mounted ATC/ATO type automotive fuses High Current Output Capability (2 or 1 Ohm) Internal 24dB/Octave Low Pass Filter (50-250Hz) Bass Boost EQ (0 to +12dB) at 50Hz Remote Level Control for Dash Mounting Intended for use on subwoofers RMS @ 4 Ohm 450 Watts x 1 RMS @ 2 Ohm 800 Watts x 1 RMS @ 1 Ohm Mono 1200 Watts x 1 Crossover Low Pass THD <0.2% Frequency Response 20 - 250 Hz Length 16.3 in. (414 mm) Width 9.6 in. (245 mm) Height 2.9 in. (74 mm)
