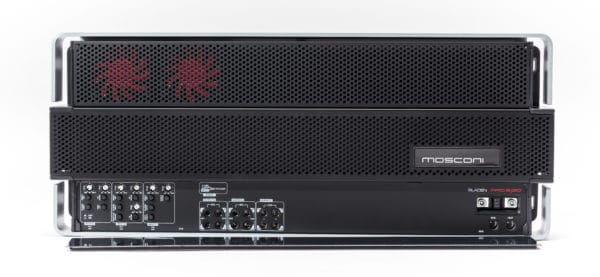

Mosconi Pro5|30

SPECIFICATIONS:
Low Pass Filter 40-220 Hz
Target Powers
95×2 + 185×2 + 660×1 Watt @ 4 Ohm
150×2 + 290×2 + 1030×1 Watt @ 2 Ohm
Input Sensitivity (Power rating ref)
0.35V ÷ 12V (5.3V in DDSP mode) [CH1/2/3/4]
0.14V ÷ 5.9V (3.1V in DDSP mode) [CH5]
Xover Functions
CH1/2= HP: 43 ÷ 500Hz(x1) or 430 ÷ 5000Hz(x10) [12 dB/oct – Q: 0.7]
CH3/4= HP: 50 ÷ 200Hz & LP:(430 ÷ 5000Hz) [12 dB/oct – Q: 0.7]
CH5= LP: 43 ÷ 200Hz [24 dB/oct]
Special Features
Direct DSP (bypass all the preamplifier circuitry but the differential input interface)
High Level / Low Level selectable input
RTC input
Internally controlled via Atmel Processor
Size 500 x 205 x 55 mm
Weight 5,4 Kg
