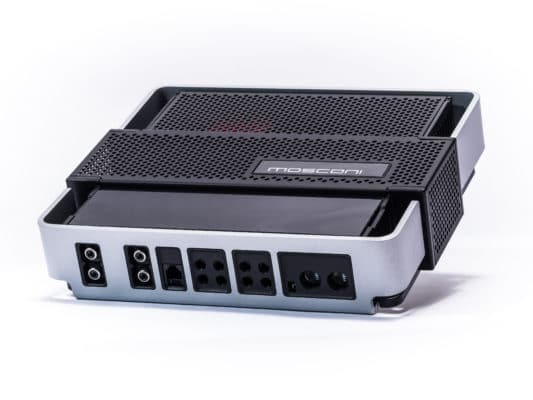

Mosconi Pro4|10

FEATURES:
4 channel amplifier
Available in Black/Silver finishing
Power Rating: 120 Watt per channel @ 4 Ohm < 1% THD+N
Sn Ratio: > 74 dBA / >95 dBA (DDSP) (ref: 1 Watt into 4 Ohm)
Click here to download the Specifications
(*) VERY IMPORTANT NOTE – READ CAREFULLY
4 Ohm ST or 8 Ohm BTL – CONTINUOUS SINEWAVE SIGNAL – pure resistive load or speaker load
2 Ohm ST or 4 Ohm BTL – MUSICAL SIGNAL – pure resistive load or speaker load
2 Ohm – MUSICAL SIGNAL – – pure resistive load or speaker load (only CH5)

SPECS:
Target powers:

120×4 Watt (Stereo) @ 4 Ohm
160×4 Watt (Stereo) @ 2 Ohm
320×2 Watt (BTL) @ 4 Ohm
Input sensitivity: (Power rating ref)

0.35V ÷ 12V (5.3V in DDSP mode) [CH1/2/3/4]
Xover functions:

CH1/2= HP: 43 ÷ 500Hz(x1) or 430 ÷ 5000Hz(x10) [12 dB/oct – Q: 0.7]
CH3/4= HP: 50 ÷ 200Hz & LP:(430 ÷ 5000Hz) [12 dB/oct – Q: 0.7]
Special features:

Direct DSP (bypass all the preamplifier circuitry but the differential input interface)
High Level / Low Level selectable input
RTC input
Internally controlled via Atmel Processor
Size:

235 x 205 x 55 mm
Weight:

2.4 Kg
