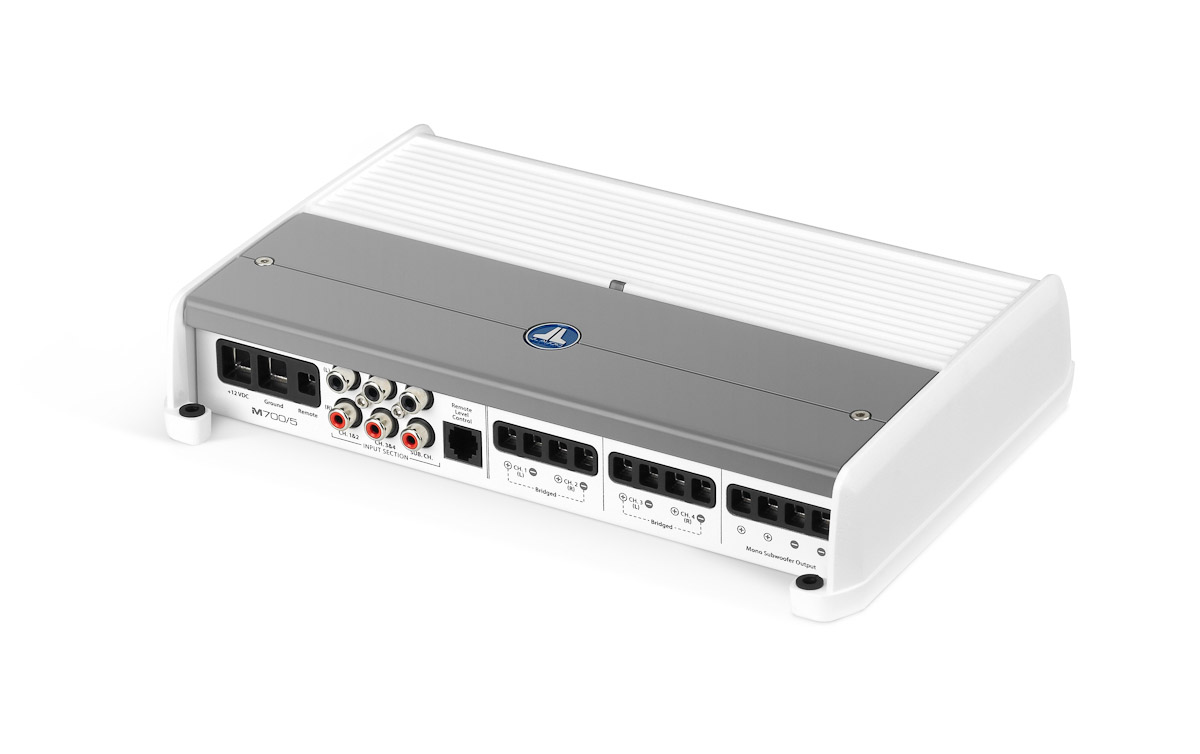

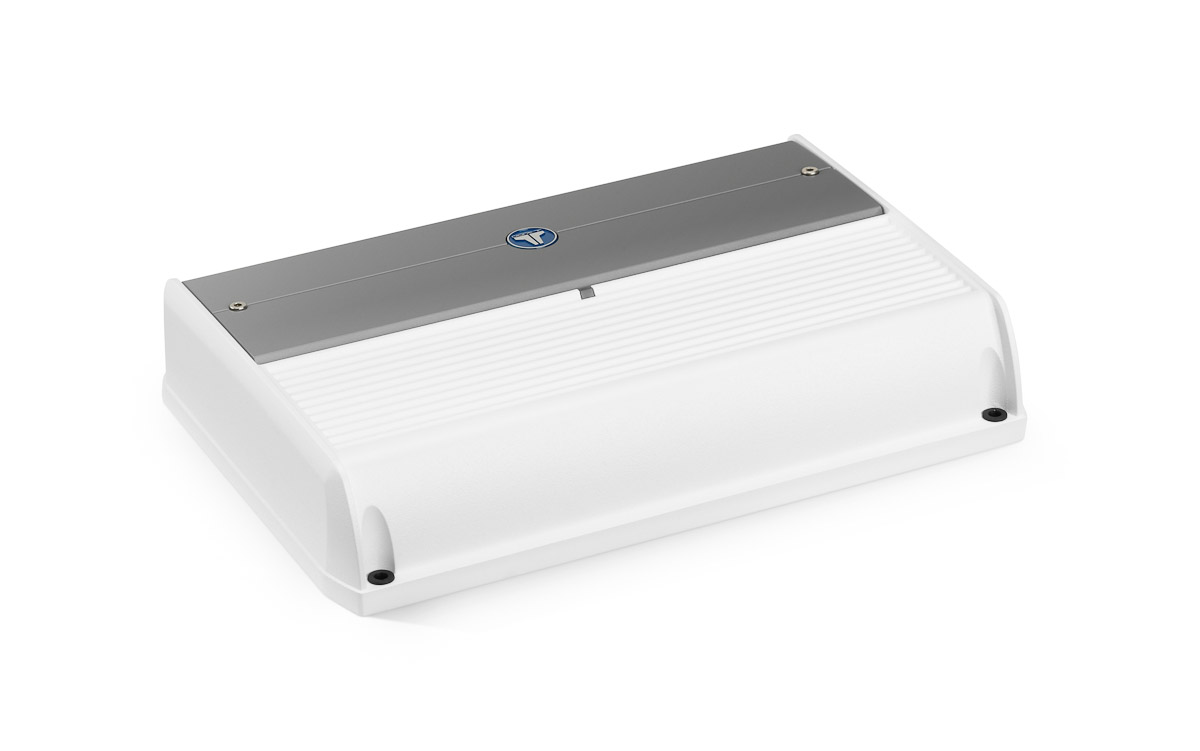

JL Audio M700/5 5 Ch. Class D Marine System Amplifier 700 W

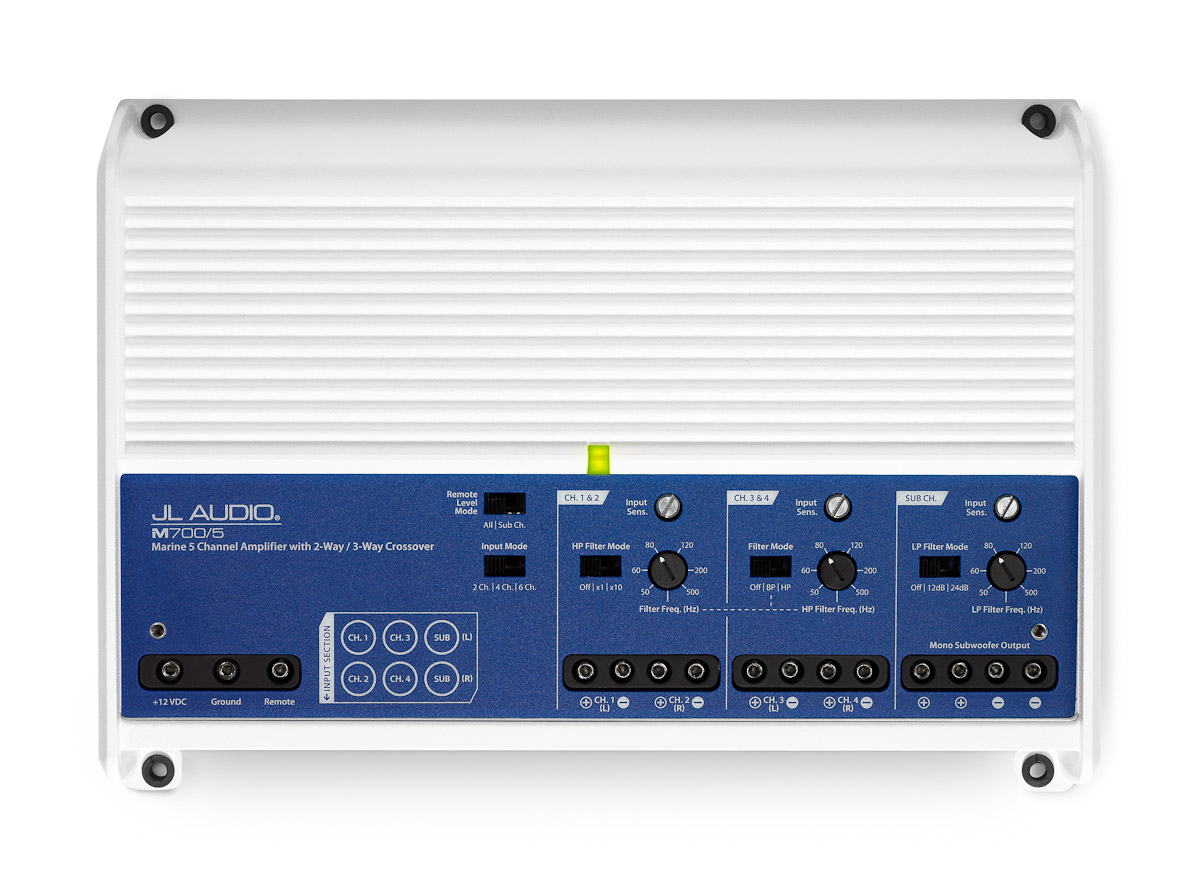

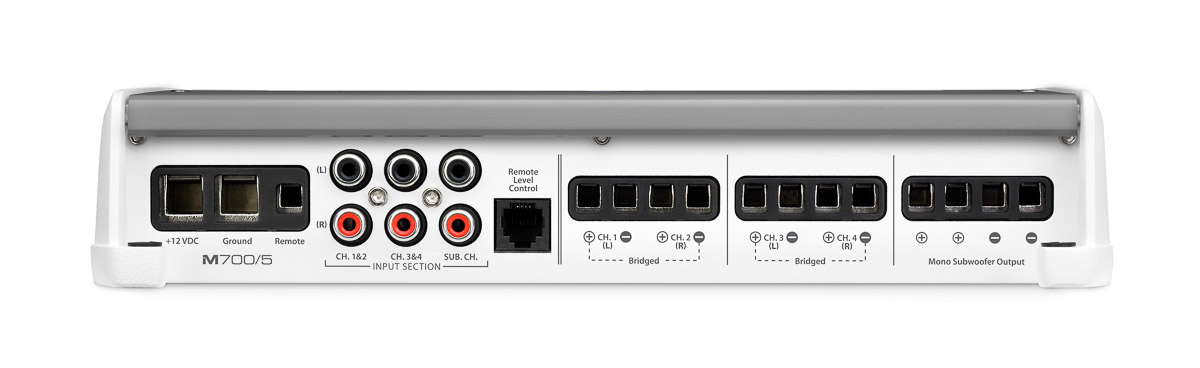

The M700/5 is ideal for a complete audiophile-grade, subwoofer + four satellite system, and it fits comfortably in just about any boat's weather-tight compartments. With this incredible little amplifier, you can drive two pairs of quality component speaker systems with plenty of clean power (75 W x 4 @ 4 Ω), while also delivering a stout 300 W of power to a subwoofer system. The breakthrough that makes this much power possible in such a small chassis is our NexD™ switching design. The M700/5 includes a 12 dB / octave high-pass filter for one main channel pair, a 12 dB octave high-pass or bandpass filter for the other main channel pair, plus a variable slope low-pass filter for its subwoofer channel. All three filters offer continuously variable cutoff frequency selection from 50-500 Hz. This amplifier's filters can also be configured as a true 3-way crossover, with a low-pass filter for the subwoofer channel, a bandpass filter on Ch. 3 & 4, and a high-pass filter on Ch. 1 & 2. An "x10" multiplier switch on the Ch. 1 & 2 high-pass filter allows its cutoff frequency to be adjusted from 50-500 Hz or 500-5000 Hz. With the addition of an HD-RLC remote level control (sold separately), the amplifier's subwoofer channel level or overall level can be directly controlled from a remote location. This marine amplifier features white and gray powder-coat finishes, a gasketed cover for the controls and stainless steel hardware for durability in the marine environment. Rated Continuous (RMS) Power @ 14.4 V Main Channels @ 4 Ω 75 W RMS x 4 Main Channels @ 2 Ω 100 W RMS x 4 Main Channels - Bridged @ 4Ω 200 W RMS x 2 Subwoofer Channel @ 4 Ω 180 W RMS x 1 Subwoofer Channel @ 3 Ω 240 W RMS x 1 Subwoofer Channel @ 2 Ω 300 W RMS x 1 Subwoofer Channel @ 1.5 Ω N/A Rated Continuous (RMS) Power @ 12.5 V Main Channels @ 4 Ω 60 W RMS x 4 Main Channels @ 2 Ω 90 W RMS x 4 Main Channels - Bridged @ 4Ω 180 W RMS x 2 Subwoofer Channel @ 4 Ω 180 W RMS x 1 Subwoofer Channel @ 3 Ω 240 W RMS x 1 Subwoofer Channel @ 2 Ω 300 W RMS x 1 Subwoofer Channel @ 1.5 Ω N/A General Specifications Frequency Response (Main Channels) 12 Hz - 22 kHz (+0, -1dB) Frequency Response (Subwoofer Channel) 10 Hz - 1 kHz (+0, -1dB) S/N Ratio, referred to highest rated power (Main Channels) >104 dB below rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth) S/N Ratio, referred to 1 W >84 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth) Damping Factor @ 4 Ω >150 / 50 Hz Damping Factor @ 2 Ω >75 / 50 Hz THD+N @ Rated Power (Main Channels) <1% @ 2 Ω per Ch. THD+N @ Rated Power (Subwoofer Channels) <1% @ 2 Ω per Ch. Input Voltage Range @ RCA Inputs 100 mV - 4 V RMS Min.Copper Power / Ground Wire Gauge 4 AWG wire Fuse Rating 60 A (AFS, AGU or MaxiFuse™) Signal Processing Filter Mode(s): Channels 1 & 2 (front) High-Pass only Filter Slope(s): Channels 1 & 2 (front) 12 dB/octave Filter Frequency Range: Channels 1 & 2 (front) 50 Hz - 5 kHz Filter Mode(s): Channels 3 & 4 (rear) High-Pass or Bandpass Filter Slope(s): Channels 3 & 4 (rear) 12 dB/octave Filter Frequency Range: Channels 3 & 4 50 Hz - 500 Hz Filter Mode(s): Subwoofer Channel Low-Pass only Filter Slope(s): Subwoofer Channel 12/24 dB/octave Filter Frequency Range: Subwoofer Channel 50 Hz - 500 Hz Detented, Calibrated Filter Freq. Potentiometers Yes Filter Defeat Function Yes Infrasonic Filter: Subwoofer Channel none Remote Level Control Optional (HD-RLC) Remote Level Modes Sub Ch. or All Channels Channel Input Mode Switch Yes (2/4/6 ch.) Pass-Through Preamp Output None Source Channel Selection for PreOuts N/A Physical Specifications Height (H) 2.05 in / 52 mm Width (W) 10.23 in / 260 mm Depth (D) 7.09 in / 180 mm Net Weight 6.15 lb / 2.79 kg
