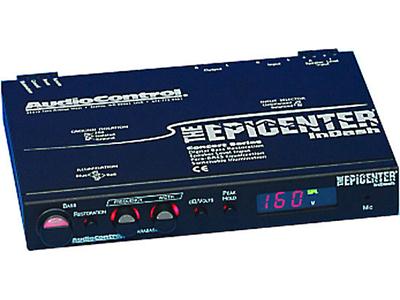

Audio Control The Epicenter Indash Indash Bass Restoration Processor

Display: A digital display on the front panel shows either the input battery voltage or the SPL measured by the front panel microphone. The peak function holds the highest SPL measured until the unit is turned off (or until the peak function is turned off). If the microphone measures SPL at 120 dB or higher, a warning light appears in the display.

Illumination: The outer ring of each knob is lit whenever the illumination terminal is energized. The color is switchable between blue and red. Wiring the illumination terminal to a dimmer circuit allows you to adjust the brightness. The digital voltage/SPL display is red.

Mounting: The 1/2 DIN Epicenter InDash chassis can be mounted in-dash, or under-dash using the included brackets.

Specifications:

Maximum Input Level: 15 volts RMS
Maximum Output Level: 9.5 volts RMS/13.5 volts peak
Frequency response: 10 Hz-100 kHz; +/-1dB
THD: 0.003%
S/N Ratio: 130dB
Balanced Input Noise Rejection: 60
dBMicrophone Acoustical Level: 70 dB to 160 dB
High SPL Warning: 120 dB
Input Impedance: 10 kΩ
Output Impedance: 160 ohms
Current Draw: 300 mA
Recommended Fuse: 1 amp
Weight: 2 pounds

Connections:
Line Inputs: stereo RCA jacks; rear panel
Speaker Level Inputs: removable terminal block; rear panel
Line Outputs: stereo RCA jacks; rear panel
