Audio Control The Epicenter 600 High-Power Subwoofer Amplifier

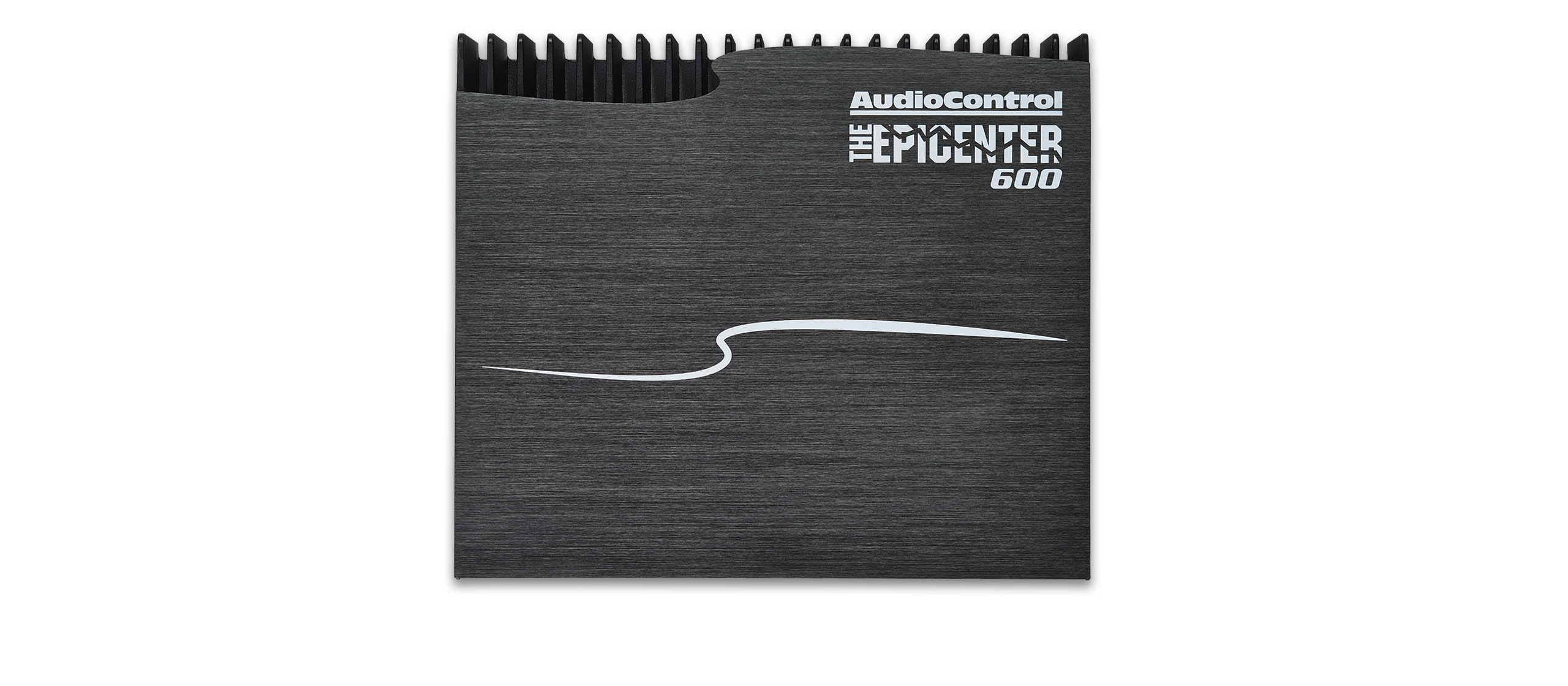

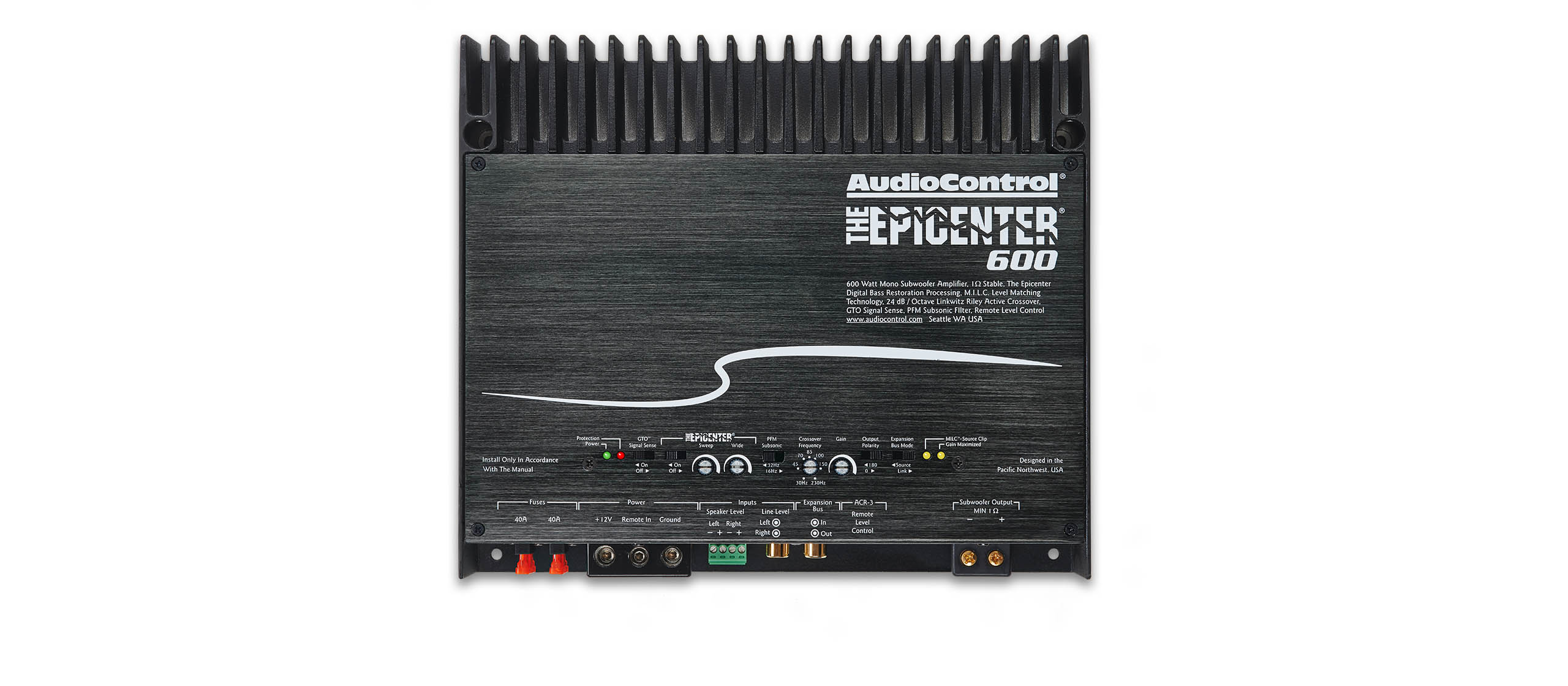

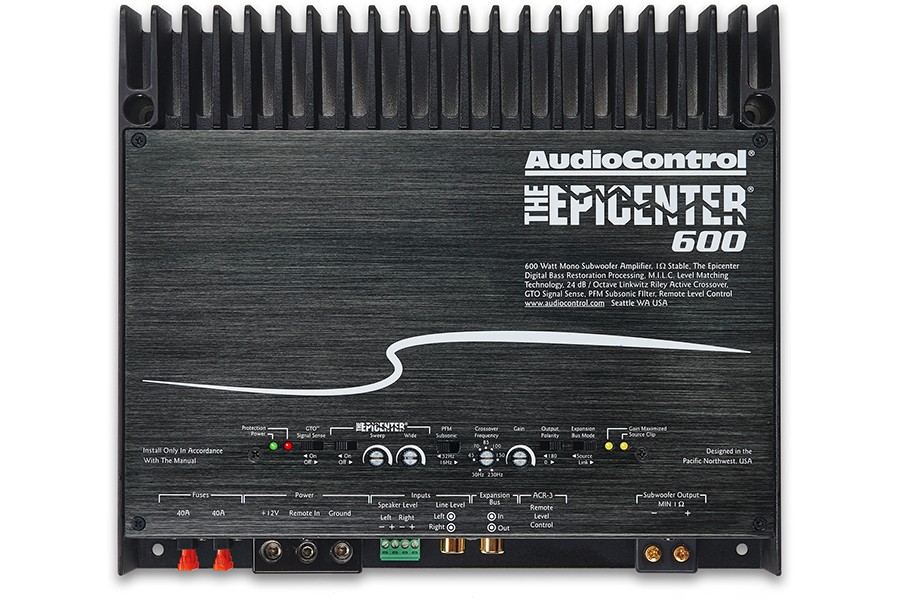

When car audio systems demand high levels of subwoofer power output into difficult loads, and a wide range of adjustment to optimize the subwoofer performance within the system, the AudioControl EPICENTER® 600 and 1200 power amplifiers are the ideal solutions. Each model delivers high current, stable down to 1 Ohm, and each has a removable top cover that allows access to controls for THE EPICENTER® effect, crossover frequency, gain, polarity, subsonic filter, signal sense and expansion bus mode.

FEATURES
•High Current Design – 1 Ohm Stable
•600 watts at 1 Ohm
•THE EPICENTER® Digital Bass Restoration
•MILC™ Maximum Input Level Control (Patent Pending)
•24 dB/octave Linkwitz-Riley Alignment Crossover
•GTO Signal Sense
•PFM Subsonic Filter
•Line-Level RCA Inputs and Active Speaker-Level Inputs
•Solid One-Piece Aluminum Chassis
•Remote Control for Subwoofer Level and THE EPICENTER® effect
•Expansion Bus

SPECIFICATIONS:

INPUTS
- Preamp Inputs: 1 Main, 1 Expansion Bus
- Input Voltage Range: 200 mV – 6 V RMS

OUTPUTS
- Rated Continuous (RMS) Power at 14.4V: - 4 Ω – 200 W x 1 RMS
- 2 Ω – 350 W x 1 RMS
- 1 Ω – 600 W x 1 RMS

- Expansion Bus Output: Buffered, post-processing

PERFORMANCE
- Frequency Response: 16 Hz – 250 Hz
- Signal to Noise: 104 dBa, Ref 600 W @ 1 Ohm
- Damping Factor: 670 at 10 V, 4 Ohm Output, 100 Hz
- THD+N: < 0.1%
- Bass Processing: The Epicenter®
- Minimum Power / Ground Wire Gauge: 3 AWG wire
- Fuse Rating: 2 x 40 A
- Low-Pass Filter: 24dB/Octave Linkwitz-Riley, Adjustable From 30 Hz – 250 Hz
- PFM Subsonic Filter: 18dB/Octave, Selectable 16 Hz or 32 Hz
- Output Polarity Switch: Yes

WEIGHTS & DIMENSIONS
- Dimensions: 9″W x 7.95″D x 2.1″H
- Weight: 4.5lbs (2.0kg)

IN THE BOX: THE EPICENTER® 600, ACR-3 Remote, Speaker connector, Fuses, Manual, Warranty
