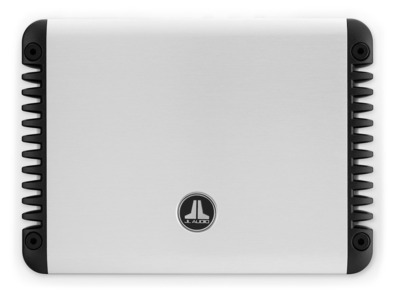

JL Audio HD600/4 4-Channel Class D Full-Range Amplifier

4-Channel Class D Full-Range Amplifier, 150 W x 4 @ 1.5-4 Ω This compact multi-channel powerhouse employs our Single-Cycle Control switching design and R.I.P.S. technology to deliver 150 W x 4 or 300 W x 2. Tight power supply regulation keeps distortion down and maximizes sound quality. When using the HD750/1 or HD1200/1 to drive a subwoofer system, the HD600/4 is the ideal satellite amplifier, delivering huge dynamics with pristine resolution. From a pure sound quality perspective, we invite you to compare the real-world, in-car performance of this amplifier to any other amplifier on the market, of any type, at any price. It can also be deployed on its own as a very capable 3-channel system amplifier with 150 W x 2 to the satellites and 300 W x 1 to a subwoofer system. This amplifier features a brushed aluminum finish with black powder-coated cast alloy heat sinks and bottom panel. A black powder-coated, gasketed cover is also provided to protect the controls. SKU # 98221 view larger View Larger Overview Specifications Technology Support User Reviews Rated Continuous (RMS) Power @ 14.4 V @ 4 Ω 150 W RMS x 4 @ 3 Ω 150 W RMS x 4 @ 2 Ω 150 W RMS x 4 @ 1.5 Ω 150 W RMS x 4 Bridged @ 8 Ω 300 W RMS x 2 Bridged @ 4 Ω 300 W RMS x 2 Rated Continuous (RMS) Power @ 12.5 V @ 4 Ω 150 W RMS x 4 @ 3 Ω 150 W RMS x 4 @ 2 Ω 150 W RMS x 4 @ 1.5 Ω 150 W RMS x 4 Bridged @ 8 Ω 300 W RMS x 2 Bridged @ 4 Ω 300 W RMS x 2 General Specifications Frequency Response 6 Hz - 30 kHz (+0, -1dB) S/N Ratio, referred to highest rated power >110 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth) S/N Ratio, referred to 1 W >88.2 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth) Damping Factor @ 4 Ω >300 / 50 Hz Damping Factor @ 2 Ω >150 / 50 Hz THD+N @ Rated Power <0.03% @ 4 Ω per Ch. Input Voltage Range @ RCA Inputs Switchable from 200 mV - 2 V RMS to 800 mV - 8 V RMS Min Copper Power / Ground Wire Gauge 4 AWG wire Fuse Rating 50 A (AFS, AGU or MaxiFuse™) Signal Processing Filter Modes Low-Pass or High-Pass Filter Slope (dB/Octave) 12dB or 24 dB Filter Frequency Range 50-500 Hz Detented, Calibrated Filter Freq. Potentiometers Yes Filter Defeatable? Yes Remote Level Control Optional (HD-RLC) Remote Level Modes 2 or All Channels Channel Input Mode Switch Yes (2/4 ch.) Pass-Through Preamp Output Type Buffered Source Channel Selection for PreOuts Yes Height (H) 1.93 in / 49 mm Width (W) 10.74 in / 273 mm Depth (D) 8.29 in / 211 mm
